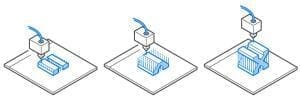

• Fused Deposition Modelingis melted by plastic filaments pushed through heated nozzles and then stacked on top of each other in a predetermined path. The filaments cool and solidify into a solid object.
• Materials: PLA Pro, ABS Pro, PETG Pro, TPU, nylon, ASA, PC, carbon fiber, composite materials, chocolate, concrete, etc
• FDM Maximum print size (XYZ)340*340*600mm，layer height：0.08mm (0.003inch)
• Accuracy ±0.5%, Lower Limit ±0.5mm(±0.02 ")

Typical applications:

1. Prototyping
   • Printed parts in most applications require a lot of post-processing to get a fine model, which can then be painted, etc
   • Low-cost desktop 3D printers are especially good for testing ideas quickly
2. Production
   • Clamps and fixtures
   • Parts are not subjected to tension in the printing Z direction
   • When a specific polymer cannot be molded using other techniques
   • Applications that require low surface quality and are not susceptible to anisotropy

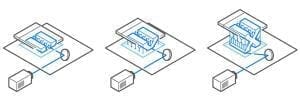

• SLA（Stereo Lithography Appearance）is the use of ULTRAVIOLET light to cure (harden) a thin layer of liquid resin until the part model is produced.
• Material: photosensitive resin (castable, transparent, industrial, biological compatible, etc.)
• SLA print size（XYZ）：1400*700*500mm & 800*800*500，general precision：0.1mm，high precision：0.05mm
• Accuracy ±0.2%, Lower Limit ±0.127mm(±0.005 ")

Typical applications:

1. Prototyping
   • Due to the high detail and surface quality, most of the applications in the production of fine prototype parts, paint, electroplating and so on.
2. Production
   • Products that are not exposed to UV rays for long periods of time, such as hearing AIDS
   • An investment cast model

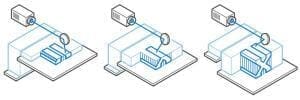

• MJF（Multi Jet Fusion） & SLS（Selective Laser Sintering）is powder bed melting technology.
• First, the roller is coated with a layer of nylon powder, which is then sintered by a laser based on a 3D model (between 160°C and 200°C), the building platform descends, and a new layer of powder is applied... Repeat the process until complete. Once finished, the metal pieces need to be cooled before extraction.
• Material: MJF(PA11, PA12, PA12GB), SLS(PA2000, PA3200F)
• MJF Maximum print size (XYZ)：380*284*380mm，layer height：0.08mm (0.003inch)
• SLS Maximum print size (XYZ)：340*340*600mm，layer height：0.08mm (0.003inch)
• Accuracy ±0.3%, Lower Limit ±0.3mm(±0.012 ")

Typical applications:

1. Prototyping
   • From display to functional prototype for most applications, later can be painted, etc.
   • Suitable for durable, chemical resistant parts
2. Production
   • Cost competitive with injection molding
   • Functional plastic parts with isotropic mechanical properties
   • For fine prototyping or mass production for end use

• SLM（Selective Laser Melting）is selective laser melting, a technique used to make metal parts.
• First, the roller is coated with a metal powder, which is then sintered by a laser based on a 3D model (between 1510°C and 1600°C), the build platform drops and is then coated with a new powder... Repeat the process until it is complete. Once finished, the metal piece needs to be cooled before extraction.
• Materials: Stainless Steel 316L, Aluminium AlSi10Mg , Titanium Ti-6Al-4V , Maraging Steel MS1
• The total size is below 100mm, the error is ±0.1mm. The total size is more than 100mm, and the error is ±0.1% of the total size.
• SLM Maximum print size (XYZ) : 250*250*300mm, layer height : 0.08mm (0.003inch)

Typical applications:

1. Prototyping
   • From display to functional prototype for most applications, later can be painted, etc.
2. Production
   • Production of industrial, functional parts, shorten assembly time
   • The automotive, medical, military, aviation or jewelry industries are all starting to take full advantage of metal 3D printing

• The working principle of 3DP molding technology is that the nozzle is under the control of the computer, according to the information of the cross-section profile, on the paved layer of powder material, selectively spray the binder, the part of the powder bond, forming the cross-section layer. After a layer is completed, the table is lowered one layer thick and so repeated to form a three-dimensional piece. The bonded parts should be placed in the heating furnace for further curing or sintering to improve the bonding strength.

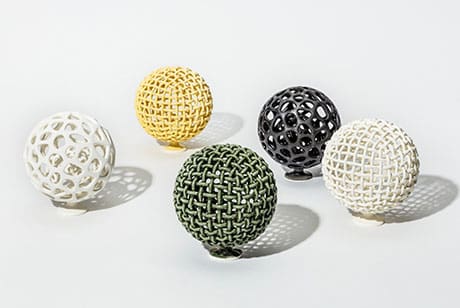

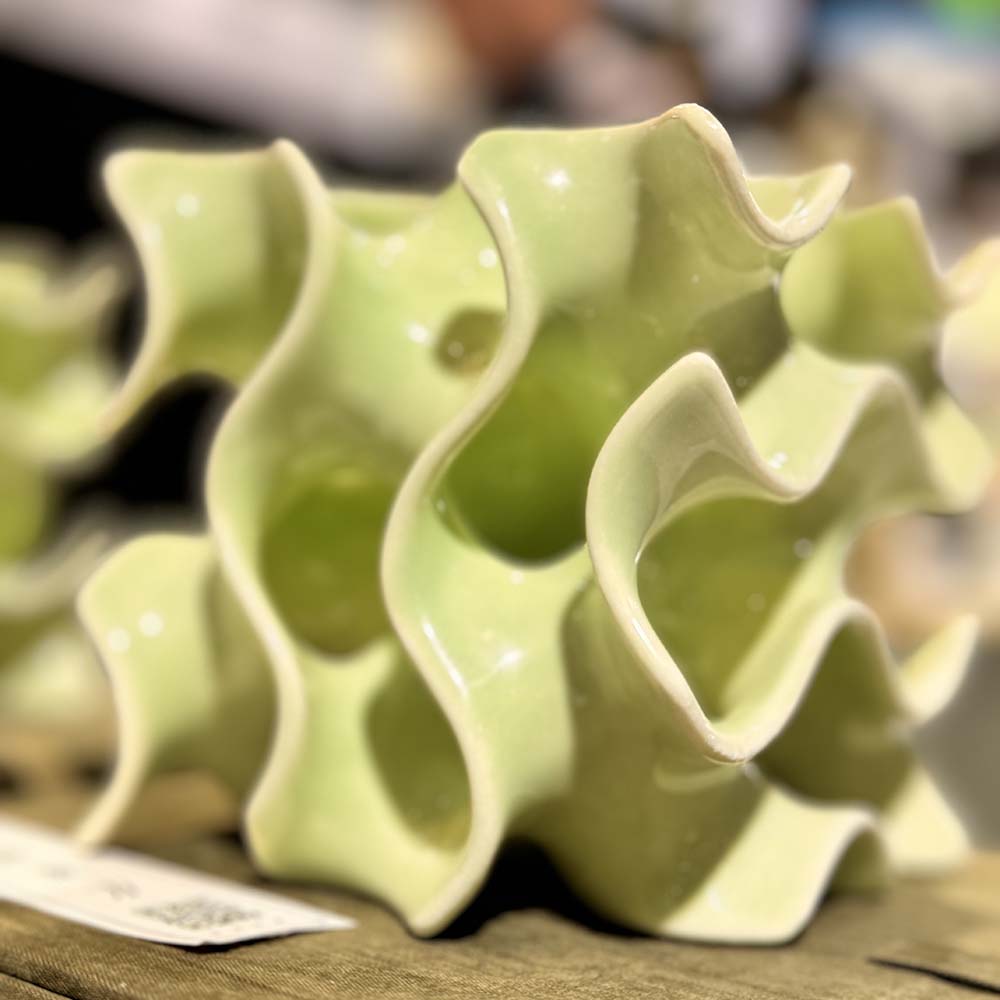

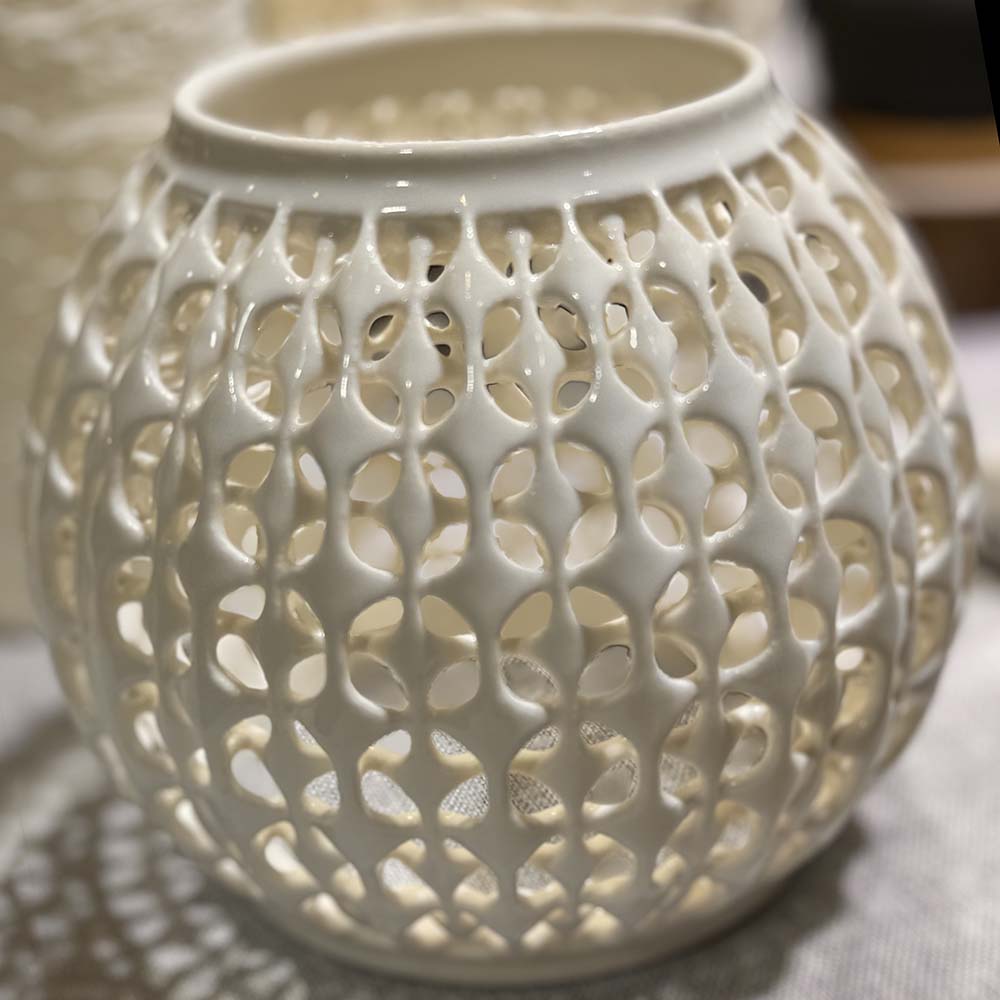

• Materials: sand (silica sand, ceramic sand, pearl sand), plastic (PMMA), PA12, PP, TPU, ceramic (SiC, AlO2, TiO2, ZrO2)
• 3DP maximum print size (XYZ) : 2500*1500*1000mm, layer height : 0.2~0.5mm (0.0007~0.0019)
• Dimensional accuracy ±0.3mm

Typical applications:

1. Prototyping

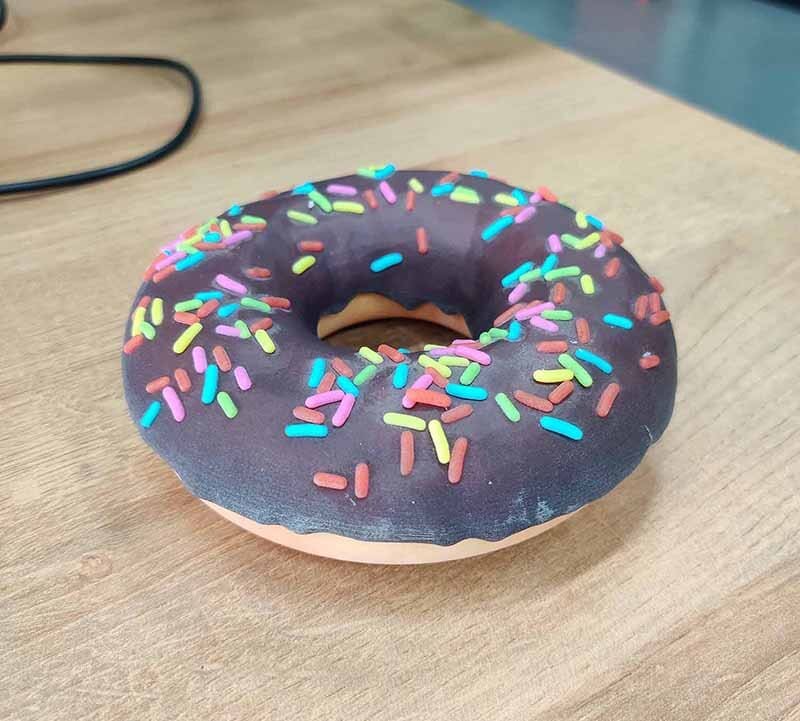

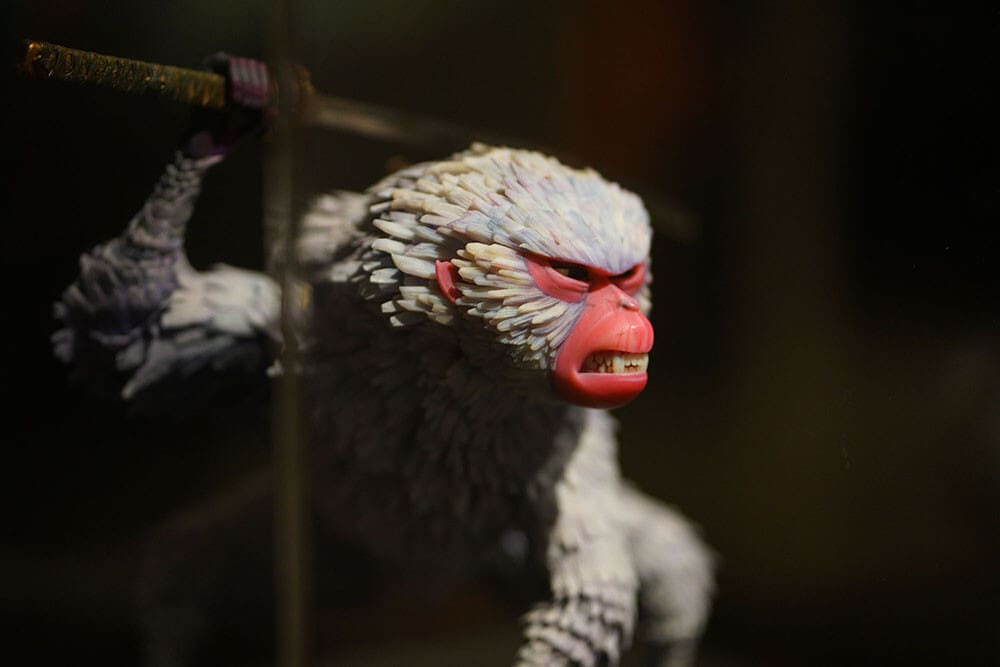

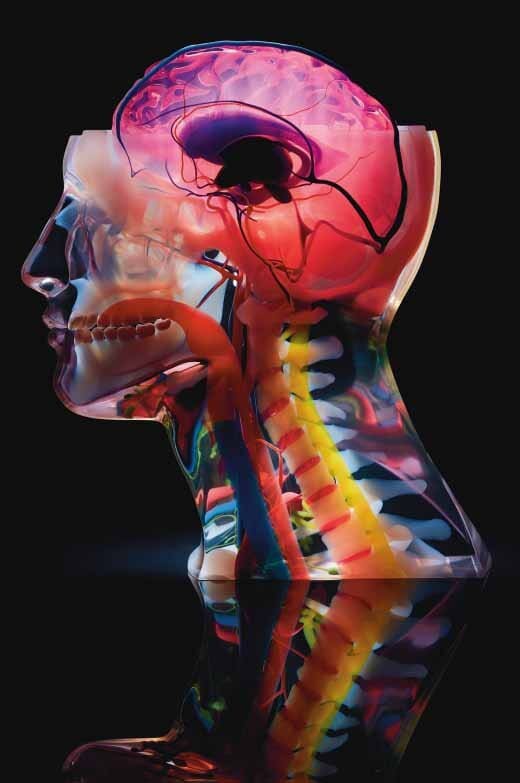

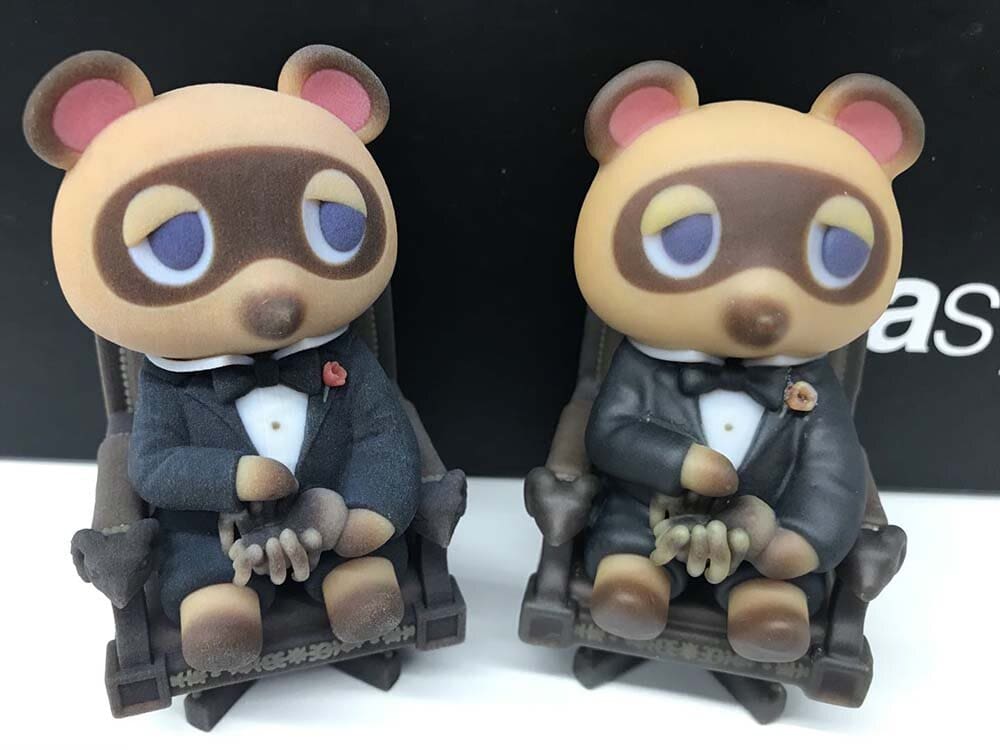

   • Full color appearance sample
   • Casting pattern printing
2. Production
   • Under certain conditions can produce blank parts, with the help of post-processing industrial products. Such as bonded metal powder later sintered and infiltrated into the metal liquid to obtain usable parts
   • Direct printing sand type, sand core
