Mole 3D Scanner
Accumulation of Hardware and Software
Mole features high precision, scanning objects with an accuracy of up to 0.05mm to capture fine details. With a single capture range of 200*100mm and a scanning speed of up to 10FPS, it can quickly scan a medium-sized object. All of this can be output in the most widely used 3D file formats OBJ/STL/PLY, supporting immediate application or further creativity.
0.05mm Accuracy, 0.1mm Resolution
With high-precision and high-resolution lenses, Mole can accurately recreate the size of scanned objects and capture more intricate details.
Ultra-Clear Texture Mode
Accurately reproduce the color and texture of your sneakers with high-fidelity texture mapping.Tips: Color models require the color kit (included in luxury combo).
-
Black objects? No problem
Near Infrared (NIR) has excellent optical compatibility, so even black objects are clearly visible. Mole now includes NIR in its configuration list, enabling it to produce excellent scanning results for objects of different colours.
Visual tracking
Using visual tracking technology and our self-developed AI algorithm, Mole enables markerless scanning, saving you significant time.
Optical anti-shake modules
Equipped with optical anti-shake modules, Mole ensures smooth and stable scanning, even in handheld mode, with high frame rates and minimal distortion.

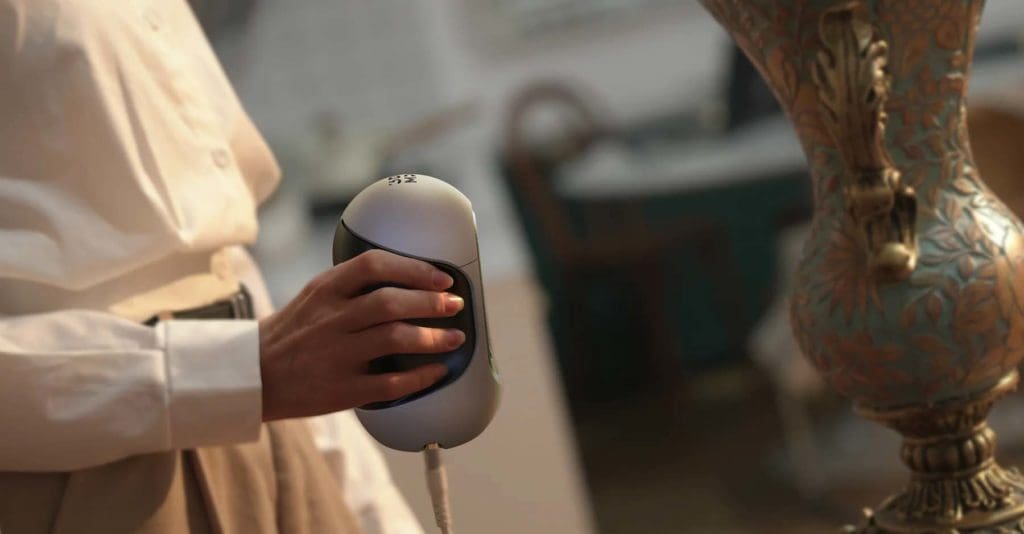

Comfortable to use
Mole's compact and ergonomic design makes scanning effortless, whether in handheld or turntable mode. Its internal cooling fan operates quietly yet significantly reduces the temperature, ensuring that Mole can operate for extended periods of time.
Adding Connect for Mole 將 MOLE 轉變為便攜式掃描器
Introducing 3DMakerpro Connect, which is designed for portable and stable scanning actions. Enjoy the freedom of scanning with zero limit, wherever and whenever you want.
Tips: Connect requires a Powerbank with a USB C port and a minimum power output of 30W.
Made for Scanning
Android | IOS
JMStudio has launched a mobile version as part of the 3Dmakerpro lightweight scanning plan. Paired with Connect, you can now scan and obtain any 3D model you desire, anywhere.
Windows | MacOS
JMStudio is 3Dmakerpro's exclusive software, handling multi-mode data acquisition, high-def preview, texture mapping, and 3D model generation for scanning equipment.
Compatible Software
Scan Performance Parameters:
- Accuracy: 0.05mm
- Resolution: 0.1mm
- Frame Rate: 10fps
- Alignment: Visual tracking
- Work Distance: 150-400mm
- Single Capture Range: 200x100mm
- Minimum Scanning: 15x15x15mm
- Offer a one-year warranty
Software System Requirements:
- Output format: OBJ/STL/PLY
- Compatible system: Windows10/11 64bit、MacOS12/13
- Compatible Mobile: Android 10.0 or later, iOS 15.0 or later
- Minimum computer requirements: Intel Core i5 8th, 16GB RAM, MX250 GPU with 2GB VRAM
- Recommended computer requirements: Intel Core i7 8th, 16GB RAM, NVDIA1060 GPU with 4GB VRAM
Hardware Parameters:
- Light Source: NIR
- Color Texture: Extended Support
- USB interface: USB2.0
- Dimensions: 141x80x80mm
- Weight: 390g
Scanner information reference:
- User Guide:click to enter
- Tutorial: 3D scanning of elephants
- Tutorial: 3D scanning sculpture

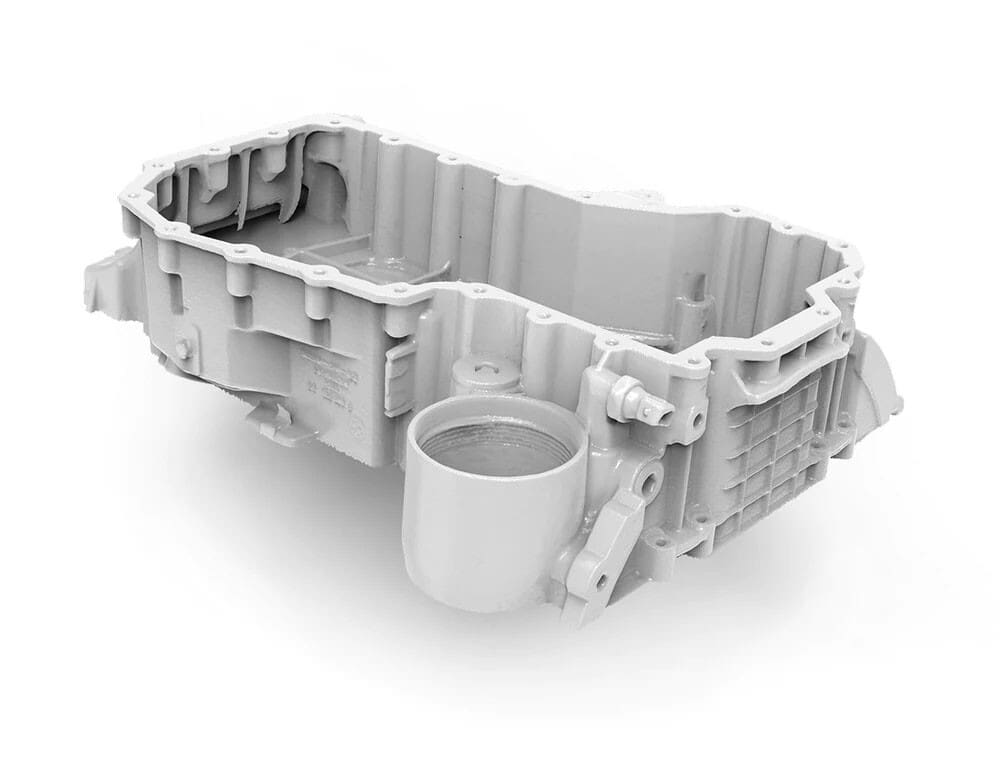

- Tutorial: 3D scanning of car parts
- Scanner software download:Click here
