Moose 3D Scanner
Moose is more than just a high-precision scanner; it’s a smarter solution for scanning. With the power of advanced AI tracking and an innovative point cloud algorithm, Moose will elevate both your scanning efficiency and quality to new heights.
AI technology is making 3d scaning smarter
Integrating AI into the scanning process and data processing makes it easier for Moose scanners to get perfect 3d models.
Artificial intelligence visual tracking
The Moose series is equipped with a new generation of single-frame encoded structured light units that improve surface feature detection for smooth, marker free scanning.

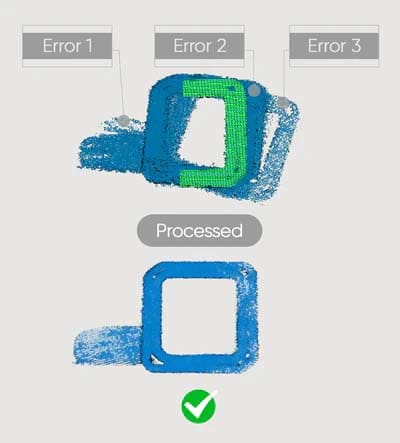

Smart Error Correction
AI eliminates flawed or misaligned point cloud data while retaining accurate points.

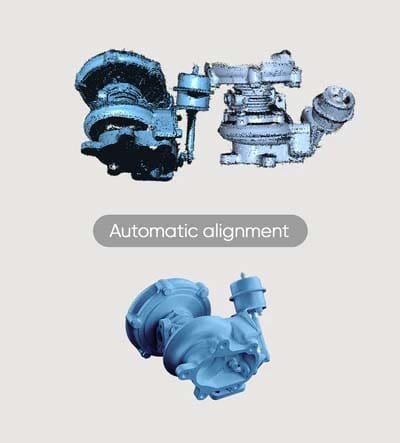

Auto Align
JMStudio can automatically stitch in most scenarios ensuring seamless connections.

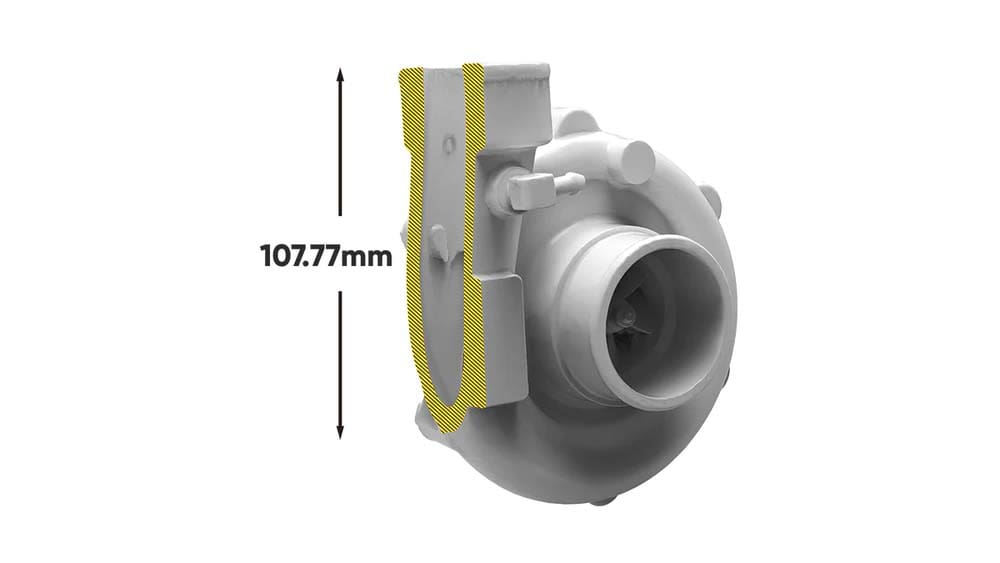

True-to-life Accuracy
With blue light technology, 3DMakerpro Moose Series can achieve 0.03mm accuracy². This makes your model size infinitely approach reality

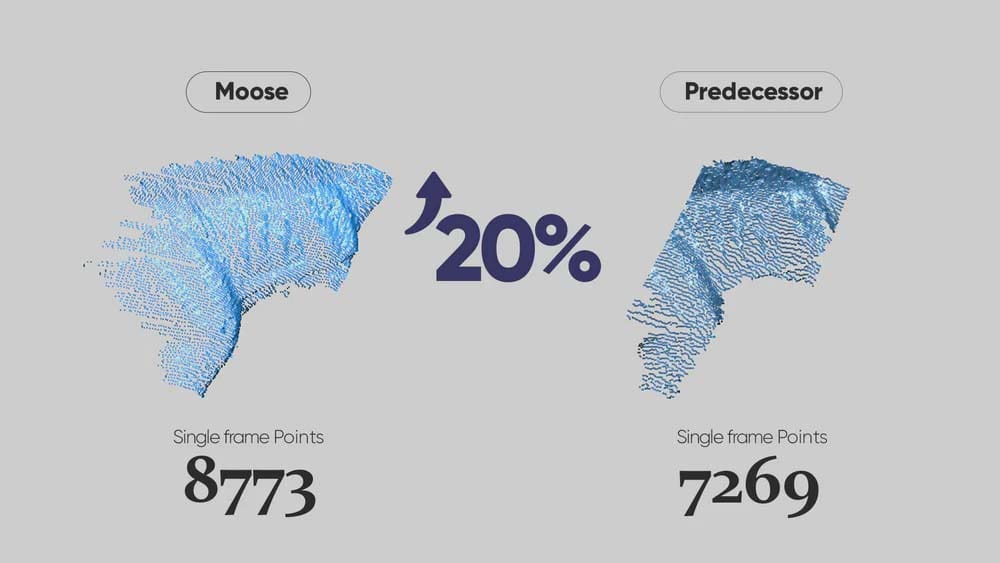

With 0.05mm resolution³
Detailed point clouds perfectly preserve object details providing refined models for printing or display projects.
Up to 100mm Scan Depth⁴
Enhanced depth exploration significantly improves vertical scanning capabilities covering complex models comprehensively even those with intricate structures.
Moose scanning performance parameters:
- Accuracy: 0.03mm
- Resolution: 0.07mm
- Color texture : 24-bit color texture
- Deep scan：100mm
- Frame Rate: 10fps
- Alignment: AI visual tracking
- Single frame scan:100*200mm
- Typical scan size range: 15-1500mm (from coins to body)
- Offer a one-year warranty
Software System Requirements:
- Output format: OBJ/STL/PLY
- Compatible system: Windows10/11 64bit、MacOS12/13
- Compatible Mobile: Android 10.0 or later, iOS 15.0 or later
- Minimum computer requirements: Intel Core i5 8th, 16GB RAM, MX250 GPU with 2GB VRAM
- Recommended computer requirements: Intel Core i7 8th, 16GB RAM, NVDIA1060 GPU with 4GB VRAM
Hardware Parameters:
- Light Source: Blue & white light
- USB interface: USB Type-C
- Dimensions: 110x60x35mm
- Weight: 230g
